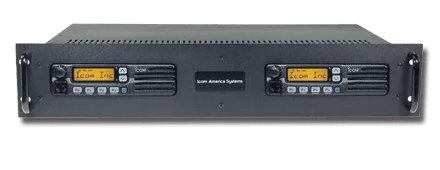

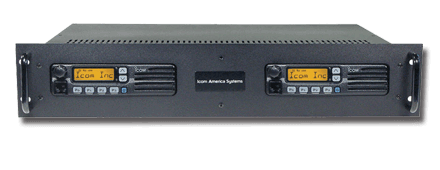

X-Band 50

Crossband Communications

Connecting VHF to UHF, UHF to UHF, and VHF to VHF, the X-Band 50 provides full UHF and VHF interoperability. This crossband provides an interoperable solution that provides over-the-air programming (OTAP). The X-Band 50 is compact in size, easy to use, and operates as a control station without the need of a network. Inter-agency communications just got easier!

Main Features:

• Local controlled operation; set on a desktop and use as a dual base unit with an optional microphone
• Alpha tag your channels with the 8-Character alphanumeric display
• Configured to auto switch from AC to DC; AC to DC auto select, 220/110/12V capable
• Easily mounts into a 19" rack frame

Frequency band:
VHF, UHF

Frequency range:
VHF: 136-174 MHz;
UHF: 400-470MHz, 450-512MHz

Power Output:
50W (VHF) / 45W (UHF)

Number of Channels/Groups/Zones:
128 channels/8 Zones

Channel spacing:
12.5/25kHz, 15/30kHz

Dimensions W x H x D
19" × 5" × 15.5"

Weight
19 lbs

Keypad / Keys
NA

Display
NA

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 C, 810 D, 810 E, 810 F

IP Standards
NA
