ICOM
V3MR
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment

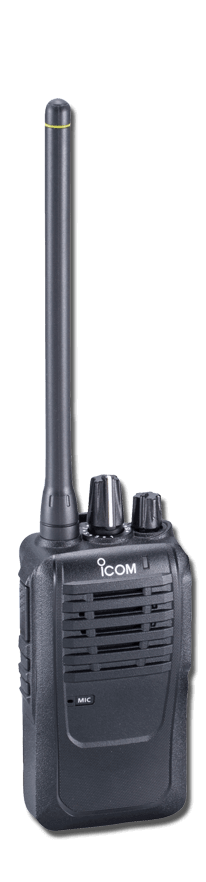

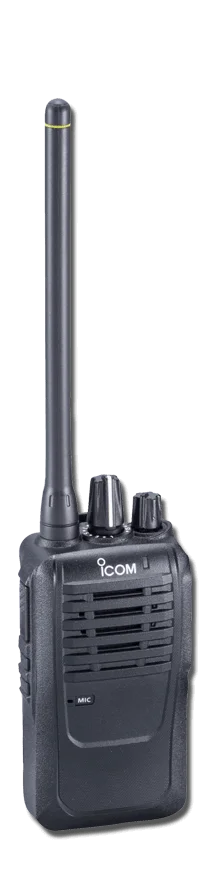

For basic operations, the V3MR provides an entry level license free Multi-Use Radio Service (MURS) option. Everything to start communications comes ready to use straight out of the box, including a li-ion battery, antenna, and a charger. This simple and professional grade two-way radio is fit for hospitality, construction, personal use, and more.
Frequency range:
151.820, 151.880, 151.940, 154.570, 154.600 MHz
Power Output:
2 W
Number of Channels/Groups/Zones:
16 Channels
Dimensions W x H x D
2.3 x 4.4 x 1.4 (in), 58 x 111 x 25.5 (mm)
Weight (main unit)
9.3 oz, 265g
Display
None
Operating temperature
–22˚F to +140˚F (–30˚C to +60˚C)
Mil spec
Mil spec
-810-C, -D, -E, -F and -G
IP Standards
IP54
Communication Range
A powerful 1500 mW speaker and the basic range for a MURS radio make it ideal for various industries.
- Up to 250,000 sq ft in a building, suited for warehouses, restaurants, and education.
- Up to 20 floors in a building, great for hospitality, retail, or hospitals.
- Up to 2 miles in a work site, perfect for construction, campsites, and hiking.
Communication ranges may differ depending on operating environment or weather conditions, etc.
Long Lasting Li-ion Battery
An outstanding battery capacity that can last up to 24-hours. This is perfect to exceed the standard workday and more. Even those who forget to charge the radio when their shift is over will have some operation time remaining.
Heavy Duty Construction
For any project in the rain, splashes in the mud, or drops on concrete, the V3MR’s compact and water-resistant chassis can withstand a daily worksite’s environment.
Other Features
- VOX function
- MDC PTT ID transmit
- CTCSS tone and DTCS code
- 2-step low battery beep
- Lone Worker and Emergency features
 | FASC28V 142-162MHz Antenna for LM portables |
 | BP279 Battery Li-ion 7.2V 1485mAh battery |
 | MB133 Alligator-type belt clip |
 | OPC656 DC power cable for gang charger |
 | BC157S AC adapter for gang chargers |
 | BC213 Rapid charger with a US plug for radios with the BP279/BP280 battery |
 | BC214 6-unit charger with US plug AC adapter and cups installed |
 | BC242 AC Adapter for BC-213 |
 | CP23L 12V cigarette lighter cable for use with rapid chargers |
 | MB130 Vehicle charger bracket holds rapid charger and requires cigarette lighter cable |
 | HS94 Earpiece headset |
 | HS94LWP Earhook headset with boom microphone with screw down connector (2-pin) for hands-free operation. |
 | HS95 Headset with boom microphone |
 | HS95LWP Behind-the-head type with boom microphone with 2-pin screw down connector |
 | HS97 Earphone with throat mic headset |
| OPC2004LA VOX conversion cable to to use the HS-97 |
| VS4LA PTT switch cable to communicate using the HS94/95/97 |
 | HM158LA Compact speaker microphone with revolving clip and earphone jack |
 | HM159LA Large speaker microphone with earphone jack and metal alligator clip |
| HM168LWP Waterproof speaker microphone |
| HM153LA Covert durable microphone with earphone combination |
| HM166LA Earphone microphone |
