ICOM

SAT100M

Description
Performance Characteristics
Physical Characteristics
User Environment

In-Building and In-Vehicle Use Global Satellite Radio

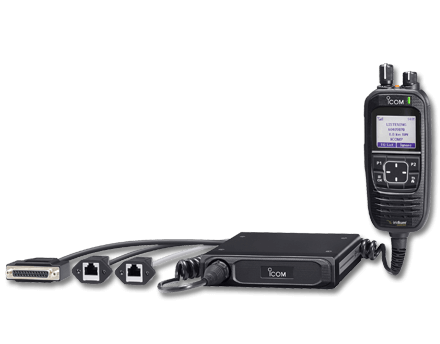

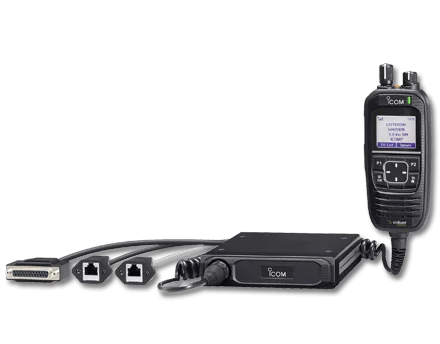

Icom's IC-SAT100M is a PTT satellite radio designed for fixed mount operations. Unlike handheld satellite radios, users with the IC-SAT100M do not need to stay outside for a clear view of the sky for a stable communication connection. This global satellite mobile radio's design easily provides coverage from vehicle to in-building use. The IC-SAT100M is backed by the Iridium® satellite network, covering the earth including both poles for a true wide area global communication solution.

Network: Iridium® Satellite
Bluetooth®: Built-in
GPS: Built-in
Output Power:
Internal SP: 1500 mW
External SP: 4W
Waterproof Rating:
Antenna w/RF Unit: IP67
Speaker Mic: IP55
Main Unit: IP54

Frequency range:
1616 MHz to 1626.5 MHz

Power Output:

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
14.5 hours

Talkgroup
15 groups (maximum)

Dimensions W x H x D (projections not included)
Antenna unit with RF unit: 3 × 7.9 × 3 in
Main unit: 4.9 ×1.1 × 6.2 in
Microphone: 2.3 × 5.3 × 1.2 in

Weight (with standard battery)
Antenna unit with RF unit: 1.1 lb
Main unit with microphone: 2.6 lb

Operating temperature
–22°F to +140°F

Mil spec
810-C, -D, -E, -F, -G.

IP Standards
Antenna unit with RF unit: IP67
Main unit: IP54
Microphone: IP55

Mobile Uses
The IC-SAT100M is designed for fixed installations, focus on driving and operate hands free with Bluetooth® capability. Attach the antenna to the roof of your vehicle to send and receive satellite signals. The supplied antenna can also be stored inside the vehicle to avoid any clearance issues. Add the optional AH-40 antenna, to mount on top of the car and conceal it with a third-party cover for a more discreet option.

In-Building Use
Talk with the Iridium® satellite network from inside a building. The IC-SAT100M is fit for being the dedicated office satellite radio. Installing a handheld satellite radio in buildings can build up costs and cumbersome installations. The IC-SAT100M can use a Power over Ethernet (PoE) switch as the power supply for the main unit and antenna. A LAN cable maximum length of 100m or 328 ft can provide a longer and more cost-efficient solution to in-building operations.

Advanced System Solutions
With the VE-PG4 gateway system, interconnect various protocols to gain true worldwide coverage. For example, connect global satellite communications with SIP IP phones, IDAS™, LTE, WLAN together. With the IP network and the VE-PG4's built-in SIM card, virtualized nationwide coverage can be provided.

Interoperable Display
The speaker mic boasts a similar display and button layout as the handheld IC-SAT100. Switch between both the handheld and mobile units with ease. The speaker mic display offers a multi-language function as well.
