ICOM
SAT100
- Description
- Performance Characteristics
- Physical Characteristics
- User Environment
One-to-Many Global Communications with a Push of a Button

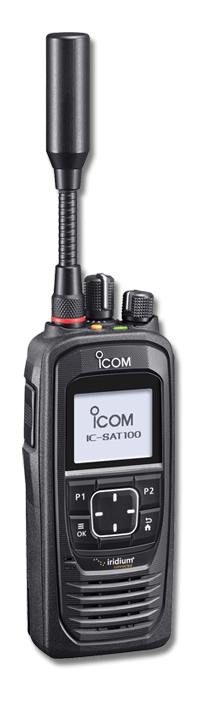

Icom’s IC-SAT100 allows users around the world to communicate with a group of PTT radios at the push of a button. To do this, the IC-SAT100 utilizes Iridium® satellite network covering the earth including both poles providing wide area global communication anywhere on the planet.
Network: Iridium® Satellite
Bluetooth®: Built-in
GPS: Built-in
Output Power: Internal SP: 1500 mW, External SP: 1000 mW
Waterproof Rating: IP67
Frequency band:
IEEE 802.11 a/b/g/n Standard
Frequency range:
1616 MHz to 1626.5 MHz
Power Output:
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
14.5 hours
Talkgroup
15 groups (maximum)
Dimensions W x H x D (with standard battery)
2.3 × 5.3 × 1.3 in
Weight (with standard battery)
12.7 oz
Keypad / Keys
Limited
Display
Full
Operating temperature
–22°F to +140°F
Mil spec
810-C, -D, -E, -F, -G.
IP Standards
IP67
Emergency Functions
Stay alert and informed with the convenient emergency key function. By holding down the orange key on the top of the radio, an emergency call will be sent to other preprogrammed radios. Users can also use the priority interrupt function to relay important messages.
AquaQuake™
With an IP67 rating that means this radio is waterproof up to 1m depth of water for 30 minutes and dustproof. With the AquaQuake™ function, stay assured that the radio stays internally dry. When using the AquaQuake™ function, the radio vibrates and pushes the water out of the grill of the speaker.
Secure Communication
Communicate confidently with short data messaging or PTT on the secure AES 256-bit encryption key.
In Building or Vehicle Use
With the optional AH-40 antenna, the IC-SAT100 can be used inside vehicles. With the Bluetooth® capability, operate hands free while driving. To keep it mounted and powered the BC-247 docking station is required.
Interoperable Display
The speaker mic boasts a similar display and button layout as the IC-SAT100M. Switch between both the handheld and mobile units with ease. The speaker mic display offers a multi-language function as well.
Other Features
- Operates 100% of the globe
- Voice recording function
- Talkgroup Scan
- Priority Interrupt Calling
- Vibration Alert
- Compatible with other Iridium® PTT devices
 | FA-S102U Antenna |
| FA-S103U Quick release connecter |
| AH-38 Satellite + GPS Antenna - OPC-2113 or user supplied coaxial cable required. |
| AH-40 Satellite + GPS Antenna 1.5 m; 16.4 ft cable length |
| AH-41 Satellite + GPS Antenna - OPC-2462 or user supplied coaxial cable required. |
| BP300 Battery 7.2 V/2200 mAh (min.) 2350 mAh (typ.) |
| MBB5 Belt clip |
| OPC2113 Co-Axial Cable for AH-38 (10 m, 32.8 ft) |
| OPC-2422 Coaxial cable for AH-40. 5 m, 16.4 ft length. |
| OPC-2462 Co-Axial Cable for AH-41(59 m; 193.5 ft) |
 | OPC656 DC power cable for gang charger |
| BC157S AC adapter for gang chargers; |
| BC-241 Rapid charger |
 | BC214-N 6-unit charger |
| BC-242 AC Adapter |
| BC247 Charger cradle for SAT100 for in-vehicle and in-building use |
 | HS94 Earpiece headset |
 | HS95 Headset with boom microphone |
 | HS97 Earphone with throat mic headset |
 | VS3 Bluetooth pendant earpiece microphone w/PTT |
| VS-5MC PTT switch cable for manual PTT, and VOX operation BLUETOOTH® HEADSET |
 | AD118 14-pin ACC adapter to use with Hirose plug accessories |
| EH15B Earphone with 2.5mm plug to use with HM-163MC |
| HM-222H High-power speaker |
| AD-135 Earphone jack adapter |
| SP-26 Tube earphone with 2.5mm plug to use with HM-163MC |
| SP-27 Tube earphone |
| SP-28 Earhook type earphone with 2.5mm plug to use with HM-163MC |
| SP-29 Earhook Earphone |
| SP-32 Tube adapter for use with the EH-15B |
| SP-40 Earphone |
| HM-184H High-power speaker type |
| HM-236 Compact type |
| HM163MC Lapel microphone with 2.5mm earphone jack |
