IP110H

Real-time Voice Communication Tool that Instantly Connects You with Your Team

Icom's IP Advanced Radio System for wireless networks products bridges the gap between license-free and licensed radio devices. The system is easy to connect to an existing wireless network and allows full duplex communication with reliable sound quality. Icom’s new WLAN-based radio system offers scalable, license-free communication that uses standardized wireless network products as infrastructure.

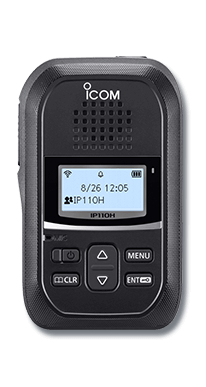

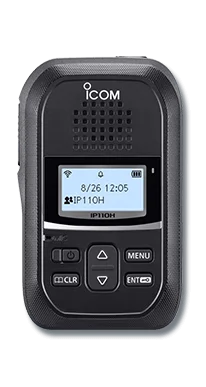

Icom’s IP110H WLAN or IP radio is the smallest professional radio on the market. The IP110H is a wireless network radio that can move freely within the network.

• All, Group, Talkgroup, Individual and Telephone Calls
• 1000 mW loud audio from internal speaker
• Optional Bluetooth® headset, VS-3
• IP67 / IP54 waterproof and dust-tight
• Battery can be charged through the USB Type-C™ cable
• More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)
• WPA2, WPA-Enterprise security

Frequency band:
IEEE 802.11 a/b/g/n Standard

Frequency range:
2.4–2.4835 GHz
5.15–5.35, 5.47–5.85 GHz

Power Output:
1000 mW typ. (Internal SP) / 300 mW typ. (External SP)

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
More than 20 Hours

Number of Channels/Groups/Zones:
N/A

Channel spacing:
N/A

Dimensions W x H x D (with standard battery)
2.2×3.8×1.0 in

Weight (with standard battery)
5.2 ounces

Keypad / Keys
Limited

Display
Full

Operating temperature
+ 32°F to + 140°F

Mil spec
Passed 12 categories of environmental tests

IP Standards
IP67 / IP54
