IP100H

License-Free Radio for Wireless Networks (WLAN)

Icom's IP Advanced Radio System for wireless networks products bridges the gap between license-free and licensed radio devices. The system is easy to connect to an existing wireless network and allows full duplex communication with reliable sound quality. Icom’s new WLAN-based radio system offers scalable, license-free communication that uses standardized wireless network products as infrastructure.

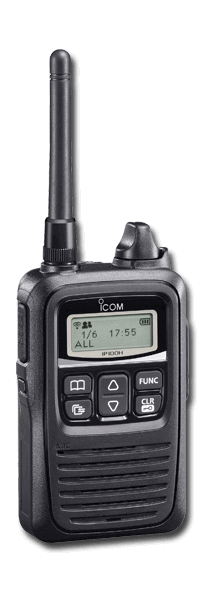

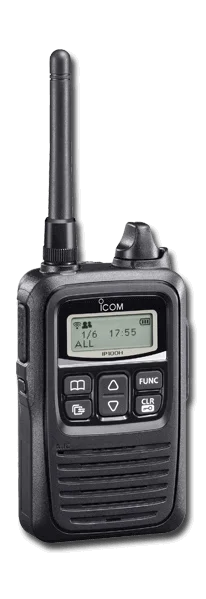

Icom’s IP100H WLAN or IP radio is the smallest professional radio on the market. The IP100H is a wireless network radio that can move freely within the network.

• IPX7 waterproof (1m depth water for 30 minutes) for outdoor work or places prone to get wet.
• Compact 2.28 × 3.74 × 1.04 in body and 7.2oz (approximate) lightweight.
• Vibration alert function for incoming calls.

Full-Duplex Communication That Works Over a Wireless LAN and IP Networks*

• Easy system to set up and use
• Up to 100 users can communicate at the same time
• Encryption provides extra security
• Range is only restricted by your IP network coverage
• No license fee required, no call charges

Frequency band:
IEEE 802.11 a/b/g/n Standard

Frequency range:
2412-2472 MHz (13 channels)
5180-5700MHz (19 channels)

Power Output:
10mW

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 27 hours

Number of Channels/Groups/Zones:
N/A

Channel spacing:
N/A

Dimensions W x H x D (with standard battery)
2.28 × 3.74 × 1.04 in

Weight (with standard battery)
7.2 ounces

Keypad / Keys
Limited

Display
Full

Operating temperature
NA

Mil spec
NA

IP Standards
NA
