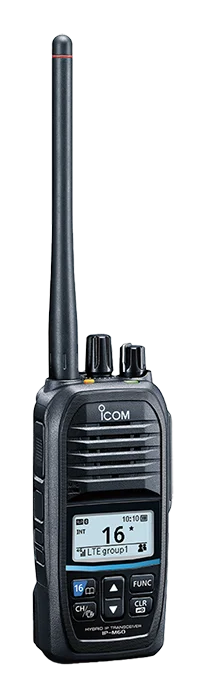

IP-60M

World’s First* LTE and VHF Marine Hybrid Transceiver
Offshore and Onshore Communication

The IP-M60 is the world’s¹ first hybrid IP radio, combining two communication modes in one device: VHF marine and LTE. It functions as a marine VHF handheld mobile radio — widely used for maritime safety — and as a land-based LTE cellular radio for long-distance communication within cellular coverage areas^².

The IP-M60 is ideal for use offshore, in ports, rivers, and canals where both maritime and land-based communication are needed. It’s especially useful for rescue boats coordinating with search-and-rescue agencies, or during events like yacht races that require communication across multiple networks.

*1 According to Icom research as of February 2024.
*2 Coverage area depends on the LTE network provider.

Four Operating Modes

Cellular (LTE) Mode
In Cellular mode, communication takes place over the carrier’s LTE (or 3G) network, allowing calls anywhere within coverage. Simultaneous TalkListen™ enables full-duplex communication, so users can talk and listen at the same time—just like a phone call.

Marine Mode
This mode operates as a VHF marine radio, offering the same core functions and performance as traditional models like the Icom IC-M25. VHF marine communication is essential for ensuring maritime safety between vessels and coastal stations.

Cellular (LTE) + Marine Mode
Cellular and Marine modes can be used simultaneously (simultaneous reception is possible and audio is MIXED.) PTT buttons for Main and Sub-mode make it possible to select the communication mode assigned to each with one touch. The communication mode can be selected quickly without having to switch modes. Simultaneous transmission on both channels is possible by pressing the PTT buttons for the Main and Submode at the same time.

Four Sub-modes — Automatically Select Transmission Mode
Cellular + Marine Mode offers four sub-modes: “Cellular Main”, “Marine Main”, “Adaptive PTT with Cellular Main”, and “Adaptive PTT with Marine Main”. Below are examples of “Cellular Main“ and “Adaptive PTT with Cellular Main“ modes. The same settings can be swapped between Marine and LTE modes.

Cellular Main Mode
In the Cellular Main mode, the IP-M60 typically stands by in Cellular mode and initiates calls to cellular groups on pushing the Main PTT button. However, if a call is received on a marine channel, the radio temporary switches to the Marine mode to respond on the marine channel.

Adaptive PTT with Cellular Main Mode
In this mode, the radio remains in the Cellular mode by default and initiates calls to cellular groups when the Main PTT button is pressed. As the operator moves to preprogrammed marine area (GPS point), the radio automatically shifts to the Marine mode and transmits on a marine channel.

Relay Mode — Transfers Received Audio to Another Mode
Relay Mode transfers received audio between the marine and IP radio groups. When operating in this mode, the IP-M60 automatically forwards incoming voice signals without playing them through the speaker.

*The Relay function may be prohibited in some countries.

Frequency band:
4G Bands

Power Output:
.25W

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Up to 24 hours in Cellular mode.
Up to 13 hours in Marine (VHF) mode at 5 W.

Dimensions H x W x D (with standard battery)
4.8 × 2.1 × 1.4 in

Weight (with standard battery)
11.3 oz

Keypad / Keys
Limited

Display
Full

Operating temperature
+14 °F to +140 °F

Mil spec
MIL-STD-810 C, D, E and F

IP Standards
IP67 (Dust-tight and waterproof)
