Space Saving, Flexible Installation PoE Remote-Control Mobile Radio

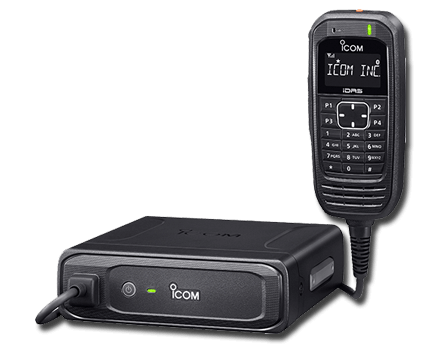

The IC-F5330D/F6330D series offers a flexible and unique installation solution that allows the main unit (RF unit) and remote‑controller (PoE PD, Power over Ethernet Powered Device) to be connected using an Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remotecontroller uses a Commandmic™ with excellent operability and a high contrast black LCD.

Frequency band:
VHF, UHF

Frequency range:
F5330D: 136–174MHz
F6330D: 400-520MHz, 400-512MHz

Power Output:
F5330D: 50W,
F6330D: 45W

Number of Channels/Groups/Zones:
128 Channels / 8 Zones

Channel spacing:
12.5 / 6.25 kHz

Dimensions W x H x D
Main unit: 150 × 45 × 161.8 mm, 5.9 × 1.8 × 6.4 in
Mic: 60.8 × 134.8 × 35.5 mm, 2.4 × 5.3 × 1.4 in

Weight
Main unit: 1.2 kg, 2.4 lb
Mic: 250 g, 8.8 oz

Display
N/A

Operating temperature
–30 °C to +60 °C, –22 °F to +140 °F

Mil spec
STD-810-C, -D, -E, -F, -G

IP Standards

Operating Mode

NXDN™ conventional
NXDN™ Type-D single-site trunking
NXDN™ simulcast
NXDN™ multi-site conventional over IP network
Analog mode

Digital Functions (Voice and Data)

PTT ID and ANI
Over-the-Air Alias (OAA) displays the caller’s name without programming
Individual, Group and All call
Late entry for Group call
Status call and Polling call
Short data messages
Call alert
Radio check (RX only)

Analog Functions

CTCSS and DTCS tone
2-Tone and 5-Tone
MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
BIIS PTT ID transmission

Security and Safety

Digital voice scrambler
Emergency call and Lone worker
Remote monitor (RX)
Radio Kill, Stun and Revive (RX)

Antenna [+]

	ANTENNA 1 118-940MHz 1/4 wave antenna, unity gain, field tunable
	ANTENNA 2 144-174MHz 3dB gain mountable antenna, CHR, 59" high
	ANTENNA 3 450-470MHz 5dB gain mountable antenna, CHR, 40" high
	ANTENNA 4 152-162MHz, unity gain antenna, NMO compatible, 21.6". Factory tuned to 157MHz

Cables [+]

	OPC1939 D-Sub 15-pin ACC cable. Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn
	OPC2078 D-Sub 25-pin ACC cable. Connects with a PC, external speaker, external channel control, ignition sense line or vehicle horn
	OPC-2478 DC power (20A, 45/50W)
	OPC-2479 DC power (10A, 25W)
