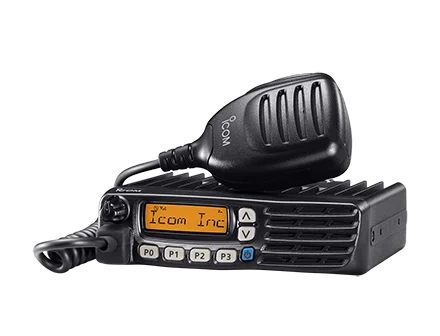

F5023H / F6023H

Features, Performance, Value for the Everyday LMR User

128 Memory Channels
128 channels (Max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.

Front Mounted Speaker
4 watts (typ.) front mounted speaker delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operation.

6 Programmable Buttons
A pair of up/down and P0–P3 function assignable buttons allow you to customize functions to meet specific needs. An independent volume knob offers simple, convenient operation.

MIL Grade Rugged Construction
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5023 series provides reliable operation over the long term in all manners of rugged environments.

Most Popular Signalings Built-in
Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The IC-F5023 series has added CTCSS/ DTCS high speed decode and 2- Tone decode accuracy.

MDC 1200 Compatible
The following MDC features are available with the built-in MDC signaling.

• PTT ID (TX/RX)
• Radio check (RX)
• Radio stun (RX)
• Radio revive (RX)
• Emergency TX/RX (No ACK)
• 5 alias table (Max.)

Wide Frequency Coverage
The IC-F5023H series covers a wide frequency range in one version (VHF 136– 174MHz, UHF 400–470, 450–520MHz).

Optional Internal Units
The IC-F5023H series has a 40-pin option slot for adding an optional internal unit.

Frequency band:
VHF, UHF

Frequency range:
F5023D: 136–174MHz
F6023D: 400-470MHz, 450-512MHz

Power Output:
25W

Number of Channels/Groups/Zones:
128 Channels / 8 Zones

Channel spacing:
12.5/25 kHz

Dimensions
5.91 × 1.57 × 4.63 in;,br />150×40×117.5 mm

Weight
0.8kg; 1.76lb

Display
Full

Operating temperature
–30°C to +60°C, –22°F to +140°F

Mil spec
810-C, -D, -E, -F

IP Standards
